How to make an amplifier circuit:

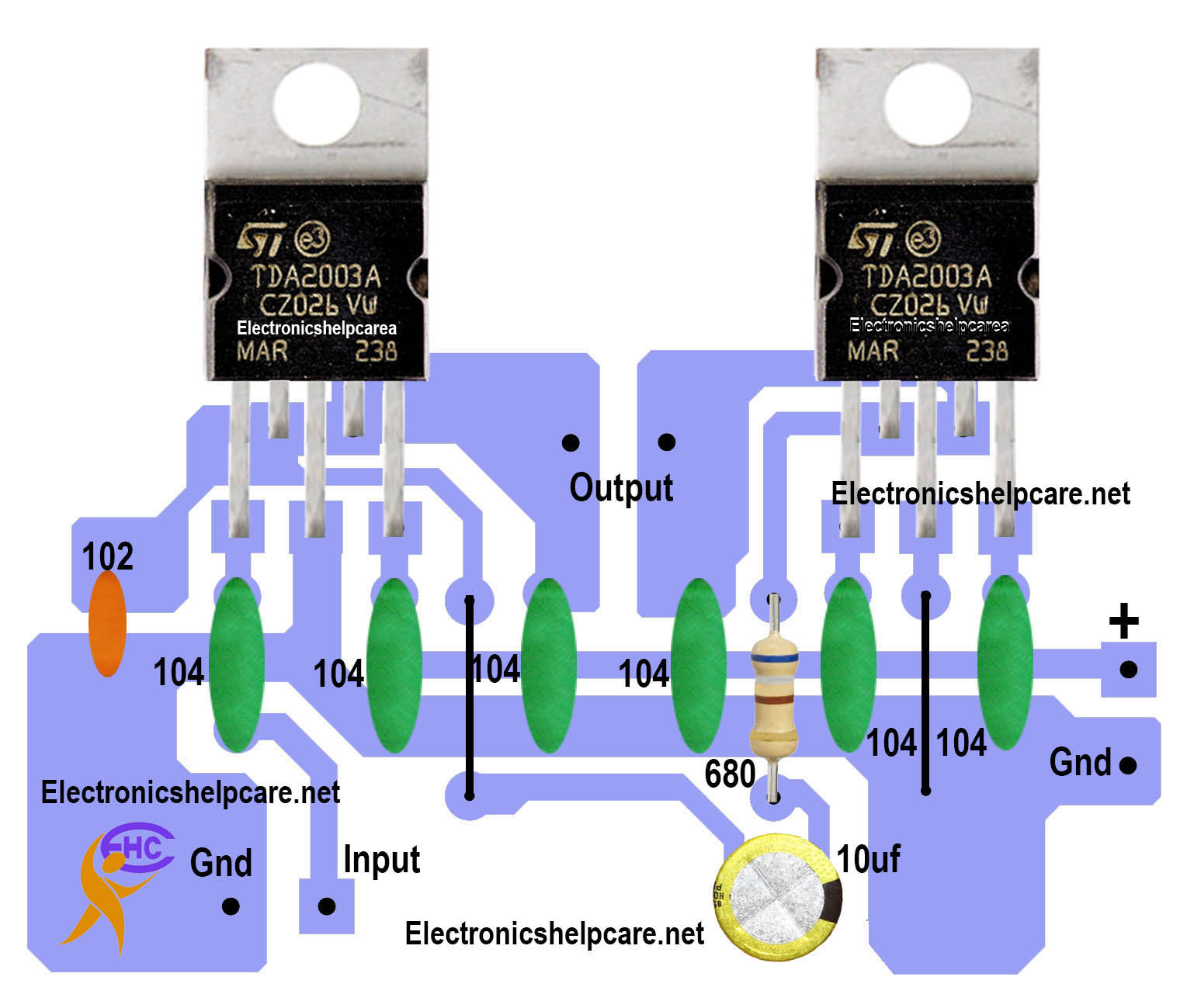

How to make an amplifier circuit? This is a mini audio amplifier circuit diagram. It can make 30 watts in bridge mode using 15 volts. This diagram needs a single voltage, positive and negative. It’s a mono diagram. To make a stereo need a dual board is needed. Here, use the TDA2003 IC. The dual IC needs to be in bridge mode. The IC needs a headsink. And the voltage must be good to make the best watts. We can use 8 volts to 18 volts. and up to 3 amperes.
The circuit diagram is here: Download link
we know that voltage X amperes = watts. For this amplifier needs a good voltage.
We can get many amplifier circuit diagrams. This circuit can be used in a 2.1 sound box. We can make a subwoofer amplifier using this diagram. To make a subwoofer, we need a low-pass filter circuit. To get the lowpass filter circuit, please visit here LOWPASS FILTER. We need this low-pass filter to make a bass amplifier for 2.1 audio. This low-pass filter makes the sound only bass. It’s also a pre-amplifier. We can use this circuit in any amplifier to make a subwoofer amplifier.
We have another post for you. like Stk 4101 repairing the amplifier,
Build a Transformer or construct the transformer. Home Theater Circuit Diagram 5.1
Thanks a lot for being with us. If you want another post, please visit our website.
We have another post for you. like repairing amplifiers. If you like electronics, please visit our other post. electronicshelpcare.com
Our Facebook page is Electronicshelpcare
We can also use this circuit as a car amplifier. This circuit runs with a 12-volt battery. The Ic and heatsink need a separator.
