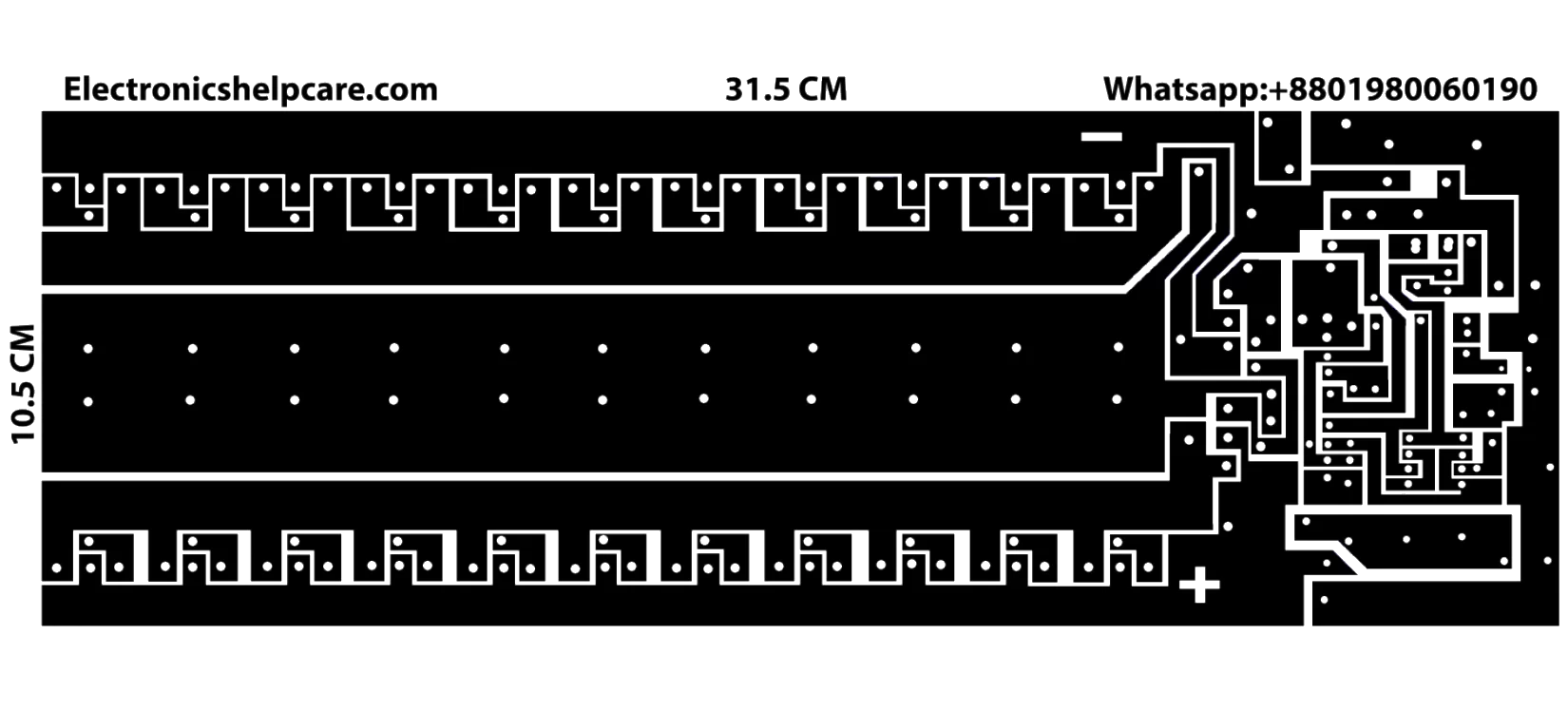

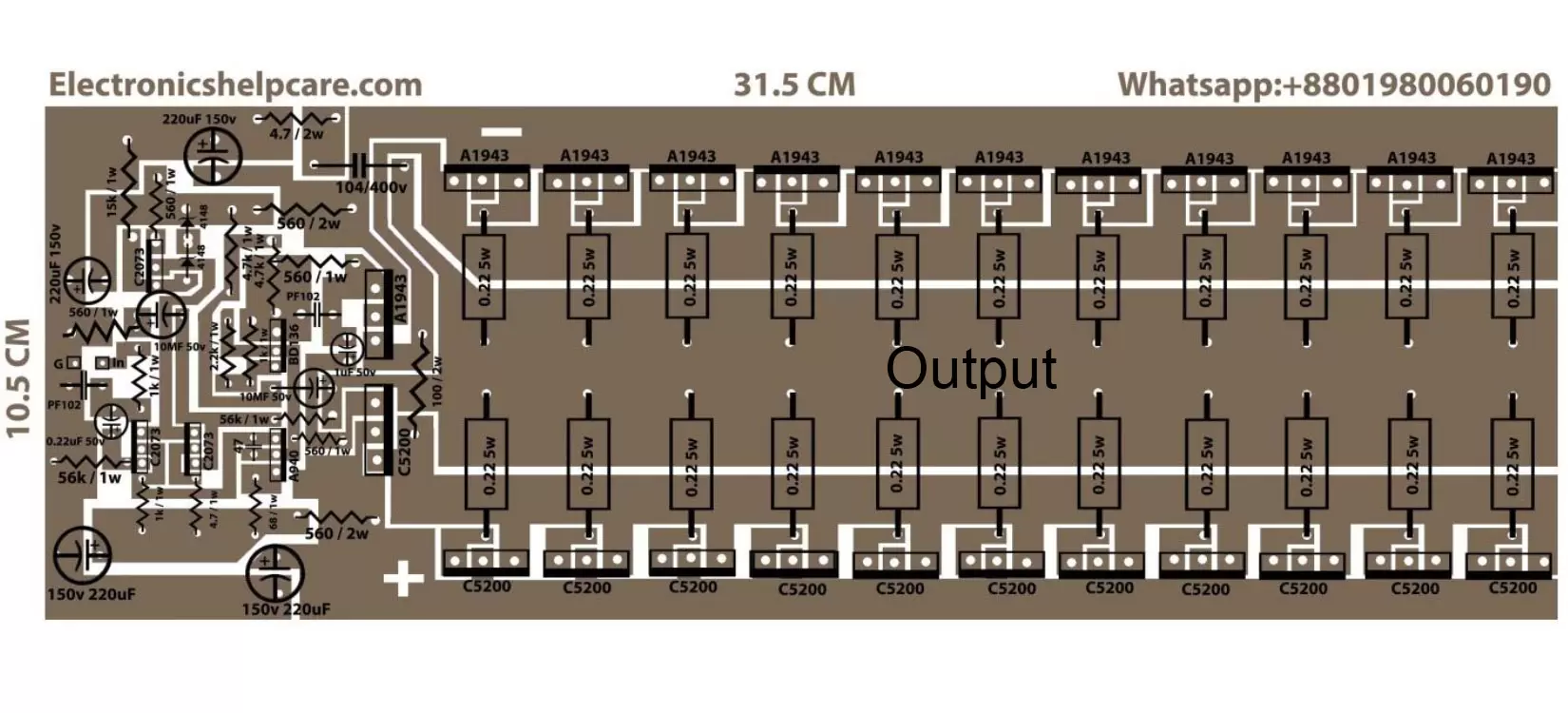

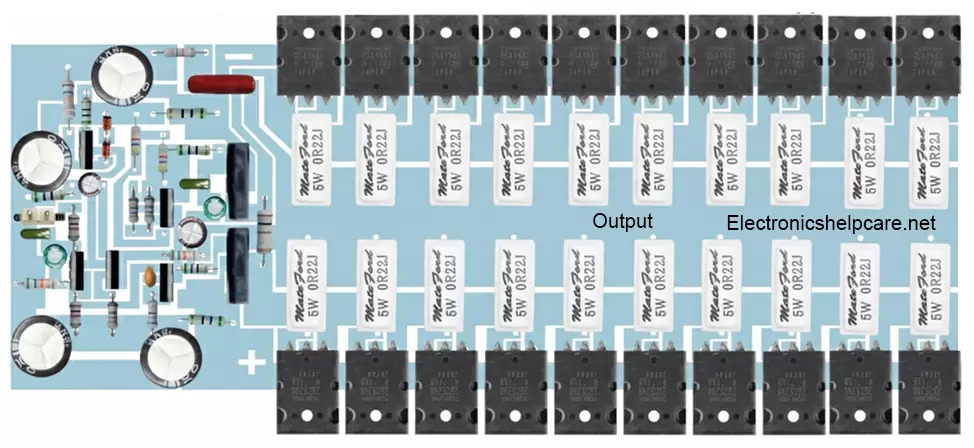

DIY amplifier circuit diagram 500+500 watts:

DIY amplifier circuit diagram, 500+500 watts. We can get 1000 watts using this circuit diagram. It’s a mono circuit diagram. One circuit can make 1000 watts of output. We can use a 24-0-24 voltage to 80-0-80 maximum voltage. and 20 amperes. voltage X amperes=watts. 60v X 10amp=600watts. 50v X 20amp=1000 watts.

The 2SC5200 (NPN) and 2SA1943 (PNP) are one of the most famous complementary transistor pairs in the world of high-fidelity audio. Originally designed by Toshiba, they are the “gold standard” for DIY and professional Class AB power amplifiers due to their high power handling and linear response.

Details about 2SA1943

2sa1943 Polarity is PNP. The maximum collector power dissipation is 150 Watts. The maximum collector-base Voltage is 250 volts. Max Collector-Emitter Voltage is 250V. The Max Emitter-Base Voltage is 5V. The Maximum Collector Current is 17 amperes.

Details about 2SC5200

2sc5200 Polarity is NPN. The maximum collector power dissipation is 150 Watts. The maximum collector-base Voltage is 250 volts. Max Collector-Emitter Voltage is 250V. The Max Emitter-Base Voltage is 5V. The Maximum Collector Current is 17 amperes.

How They Work Together

In a typical power amplifier circuit, these transistors sit at the output stage.

The “Push”: The 2SC5200 handles the positive half of the audio waveform.
The “Pull”: The 2SA1943 handles the negative half. This symmetry is what allows the amplifier to drive large speakers with high wattage while keeping distortion (specifically crossover distortion) very low.

Design Considerations for Your Project

Thermal Management: These transistors generate significant heat.⁸ You must use a large aluminum heatsink and apply thermal paste. Because the “collector” is often connected to the transistor’s metal tab, you will need mica or silicone insulators to prevent a short circuit to the heatsink.⁹

Power Supply: A dual-rail power supply (e.g., $+45V, 0V, -45V$ ) is standard for these builds. A typical 100W mono circuit usually runs comfortably on $\pm35V$ to $\pm50V$ DC.
The “Driver” Stage: These power transistors have a relatively low gain at high currents. To drive them effectively, you usually need “driver” transistors like the MJE15032/33 or TIP41/42 to provide enough base current.

Common Configurations

Simple 100W Mono: Uses one 2SC5200 and one 2SA1943.¹⁰
High Power (250W – 500W): Uses multiple pairs in parallel (e.g., 3 pairs of each) to share the current load and increase reliability.

100-watt amplifier circuit diagram using transistors:

It’s a 100-watt amplifier circuit diagram using transistors. Here, we can use any of the PNP and NPN transistors. 2sc5200 and 2sa1943 are used here. It’s a mono board. A positive ground and a negative voltage are required for this circuit. We can use a minimum 25-0-25 voltage to 50-0-50 voltage. The stereo needs dual circuits.
