DIY transistor amplifier driver circuit

DIY transistor amplifier driver circuit:

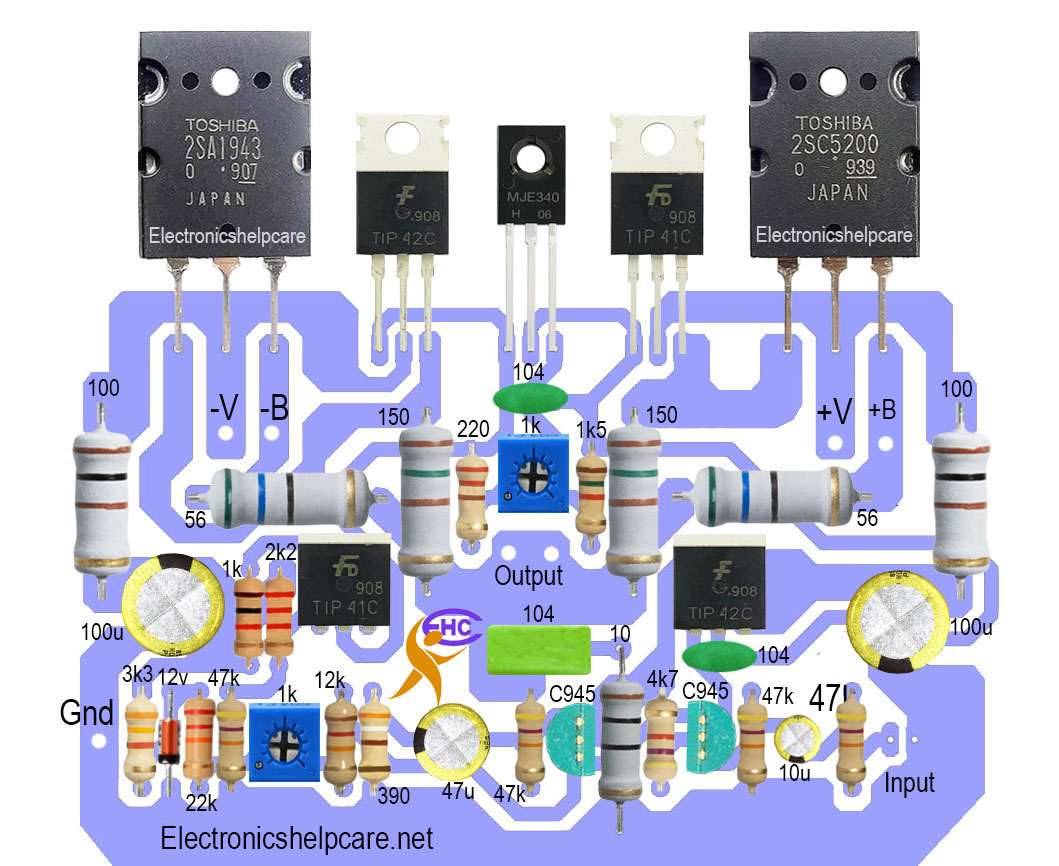

Here DIY transistor amplifier driver circuit board. This is the driver board for the transistor board. We can use 2 transistors to 60 transistors. per pair of transistors can make a maximum of 150 watts. Here, use 2 driver transistors, 2SC5200 and 2SA1943. 2sc5200 is an NPN transistor, and 2sa1943 is a PNP transistor. We can use this transistor as the main output transistor.

Needs 50-0-50 voltage for this board.

Download the circuit diagram

Details about 2SC5200

2sc5200 Polarity is NPN. Max Collector Power Dissipation is 150 Watts. The maximum collector-base Voltage is 250 volts. Max Collector-Emitter Voltage is 250V. The Max Emitter-Base Voltage is 5V. The Maximum Collector Current is 17 amperes.

Details about 2SA1943

2sa1943 Polarity is PNP. Max Collector Power Dissipation is 150 Watts. The maximum collector-base Voltage is 250 volts. Max Collector-Emitter Voltage is 250V. The Max Emitter-Base Voltage is 5V. The Maximum Collector Current is 17 amperes.

The Diagram link is here

We have another post for you. like Amplifier circuit 200 watts

Transistor circuit for amplifier
