PCB Power Amplifier 1000Watt

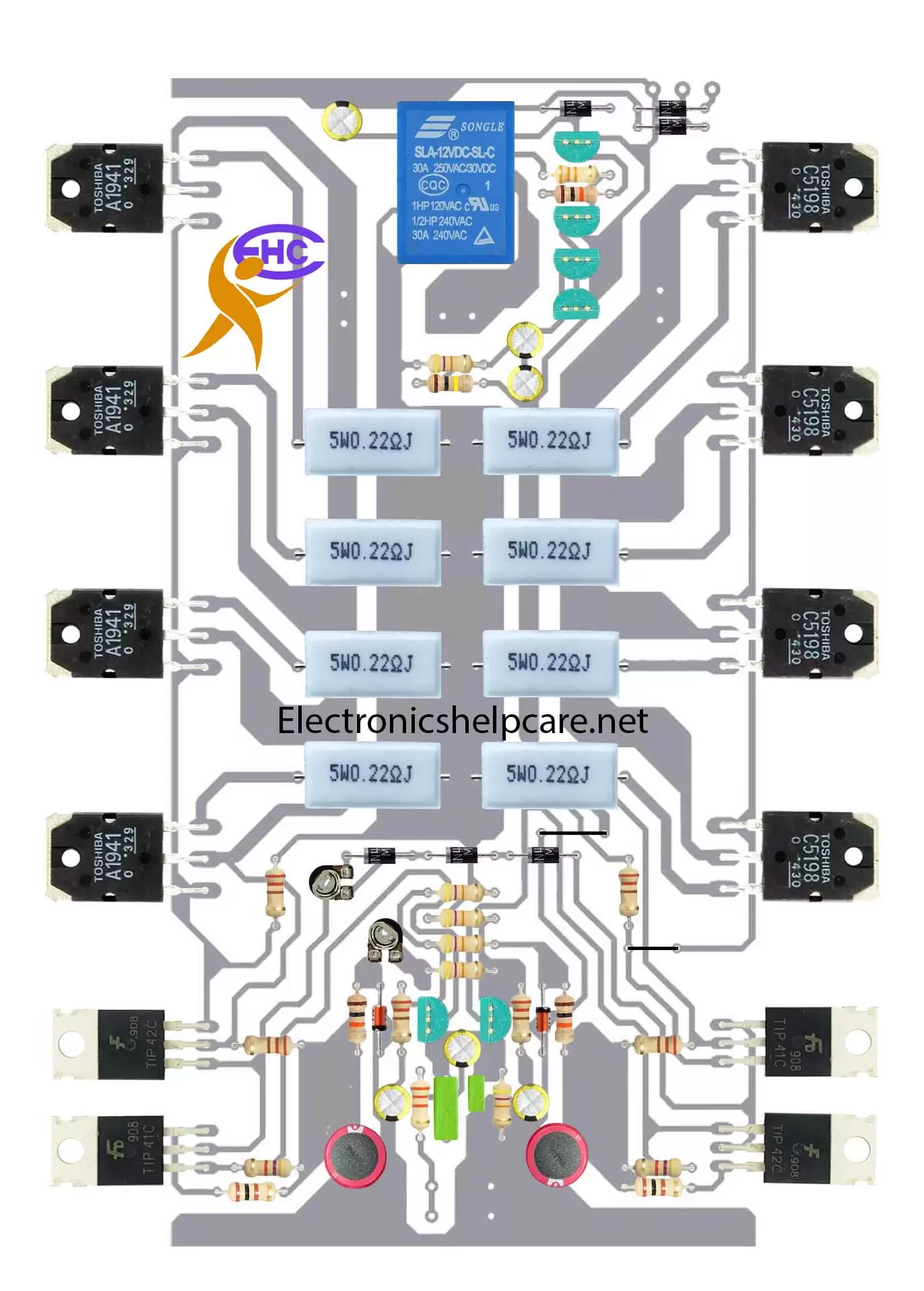

This is the PCB Power Amplifier 1000Watt. This circuit can make 1000 watts using 8 transistors. Here, use 2sc5200 and 2sa1943 transistors. This pair of transistors can produce a maximum of 150 watts. We can use 25-0-25 voltage to 60-0-60 voltage. We can also use another transistor. We can use any of the PNP and NPN transistors.

PCB Power Amplifier 1000Watt
PCB Power Amplifier 1000Watt

Details about 2SA1943

2sa1943 Polarity is PNP. The maximum collector power dissipation is 150 Watts. The maximum collector-base Voltage is 250 volts. Max Collector-Emitter Voltage is 250V. The Max Emitter-Base Voltage is 5V. The Maximum Collector Current is 17 amperes.

Details about 2SC5200

2sc5200 Polarity is NPN. The maximum collector power dissipation is 150 Watts. The maximum collector-base Voltage is 250 volts. Max Collector-Emitter Voltage is 250V. The Max Emitter-Base Voltage is 5V. The Maximum Collector Current is 17 amperes.

PCB Power Amplifier 1000Watt

This is the Speaker protection circuit diagram. It can protect our Speaker from burns. If the amplifier has any problems, this circuit can save our soundbox. Normally, when the transistor makes a short circuit, the voltage comes out from the speaker output line, and this circuit protects that voltage. This circuit should not allow direct voltage to be sent to the speaker. This circuit is essential for protecting the speaker.



PCB Power Amplifier 1000Watt
PCB Power Amplifier 1000Watt

Amplifier circuit diagram using driver board:

This is an amplifier circuit diagram using a driver board. It’s a mono circuit using PNP and NPN transistors. It can make 600 watts of output using 60-0-60 voltage and 10 amperes. 60X10=600 watts. Here, we use 8 transistors. We can also use an extra transistor if we want. A maximum of 20 transistors can be used in this circuit.

Amplifier circuit diagram using driver board

Amplifier circuit diagram using 2n3055
this is amplifier circuit diagram using 2n3055

transistor amplifier circuit diagram:

It’s a 2SC5200 2SA1943 amplifier circuit diagram PCB. It’s an NPN and PNP transistor amplifier circuit Diagram. We can also use another PNP and NPN transistor. Here in this circuit, we use 2SC5200 and 2sa1943 transistor. Now, this circuit diagram is so popular in the amplifier world. This is 2 transistor circuit diagram. One transistor can take 1.3 amperes. Here we use 2 transistors, so we can use 2 X 1.3 = 2.6 amperes. How many watts can we get from this circuit? We know Voltage X Ampers = Watts. We are going to use 35 volts and 2.5 amperes. So we can get 35X2.5=87.5 Watts.
